Fluke | IR Thermometers

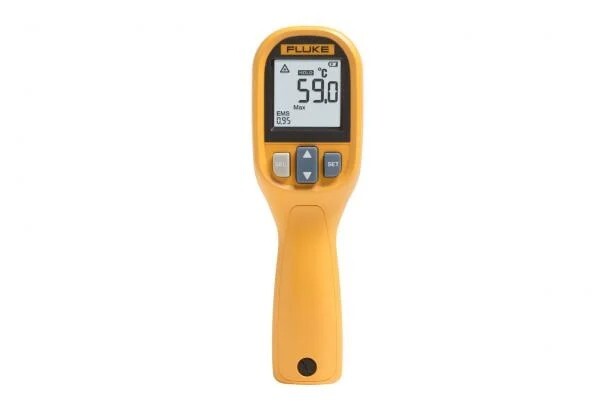

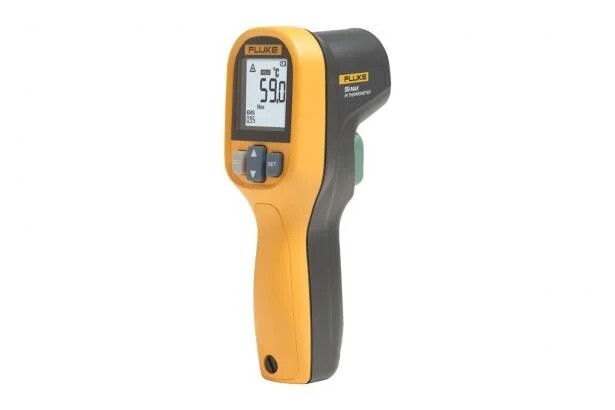

59 MAX Infrared Thermometer

Now includes NABL Calibration Certificate.

The Fluke 59 MAX Infrared Thermometer is a compact, rugged, and highly accurate non-contact temperature measurement tool. Designed for industrial applications, it features a 10:1 distance-to-spot ratio and precise single laser targeting for accurate and repeatable measurements. With a wide temperature range of -30°C to 500°C (-22°F to 932°F), it is suitable for applications in HVAC, electrical, and mechanical maintenance..

  • Detail
  • Special Features
  • Specification

The Fluke 59 MAX Infrared Thermometer is designed to provide accurate and reliable temperature measurements in various industrial and laboratory settings. Its high distance-to-spot ratio and wide temperature range make it versatile for a range of applications. The adjustable emissivity ensures accurate measurements on different surfaces. The device's rugged design ensures durability in challenging environments, while its user-friendly interface allows for easy operation.

  • Distance-to-Spot Ratio: 10:1, allowing measurements from a safe distance.

  • Temperature Range: Measures from -30°C to 500°C (-22°F to 932°F).

  • Accuracy: ±1.5°C or ±1.5% of reading, whichever is greater.

  • Emissivity: Adjustable from 0.10 to 1.00, allowing for accurate measurements on various surfaces.

  • Display Resolution: 0.1°C (0.2°F), providing precise readings.

  • Response Time: <500 ms (95% of reading), ensuring quick measurements.

  • Repeatability: ±0.8% of reading or ±1.0°C (±2.0°F), whichever is greater.

  • Power Source: 1 AA Battery (IEC LR06).

  • Battery Life: Approximately 12 hours with laser and backlight on.

  • Operating Temperature: 0°C to 50°C (32°F to 122°F), suitable for various environments.

  • Storage Temperature: -20°C to +60°C (-4°F to +140°F), without battery.

  • Operating Humidity: 10% to 90% RH non-condensing at 30°C (86°F).

  • Ingress Protection Rating: IP40 rated for dust and moisture resistance.

  • Drop Test: Withstands drops from up to 1 meter.

Specification Details
Temperature Range -30°C to 500°C (-22°F to 932°F)
Accuracy ±1.5°C or ±1.5% of reading, whichever is greater
Emissivity 0.10 to 1.00
Optical Resolution 10:1
Display Resolution 0.1°C (0.2°F)
Response Time (95%) <500 ms
Repeatability ±0.8% of reading or ±1.0°C (±2.0°F), whichever is greater
Power Source 1 AA Battery
Battery Life Approximately 12 hours with laser and backlight on
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F), without battery
Operating Humidity 10% to 90% RH non-condensing at 30°C (86°F)
Operating Altitude 2000 meters above mean sea level
Storage Altitude 12,000 meters above mean sea level
Ingress Protection IP40
Drop Test 1 meter
Vibration and Shock IEC 68-2-6 2.5 g, 10 to 200 Hz; IEC 68-2-27, 50 g, 11 ms
Electromagnetic Compliance EN/IEC 61010-1:2001; Laser safety: FDA and EN 60825-1 Class II
